Product Introduction and Features

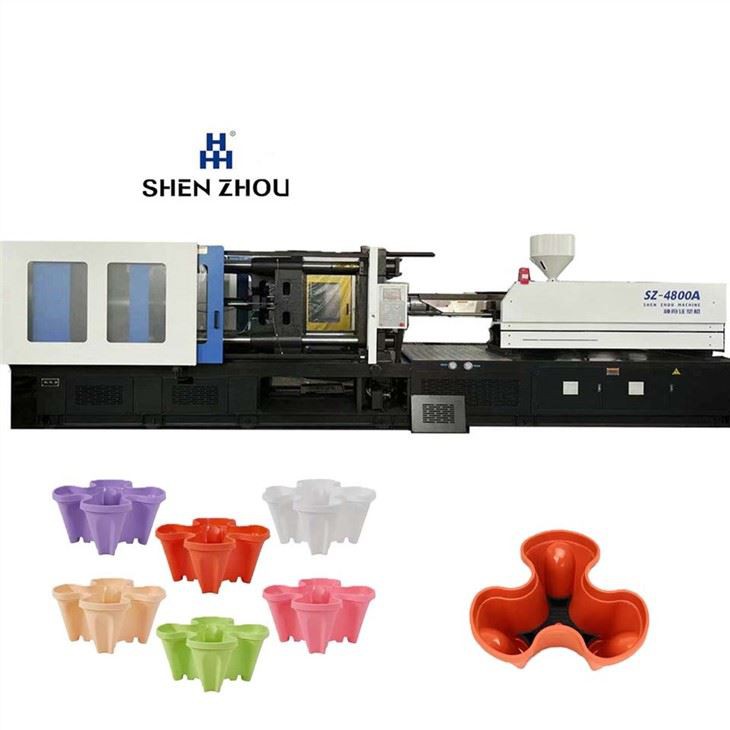

The Hydraulic Injection Molding Machine is an essential piece of equipment that utilizes molds to create a multitude of plastic products. It powers the different machine actions through the hydraulic system, ensuring the pressure, speed, temperature, and other requirements of every part are met. As such, the Hydraulic Injection Molding Machine is crucial to many sectors, including households, industries, agriculture, infrastructure, and transportation, and is integral to our food, clothing, housing, and transportation needs. In our everyday lives and work, we encounter a vast array of plastic products, which have all been produced through the use of this machine.
The manipulator of the Hydraulic Injection Molding Machine is capable of gripping molds weighing several hundred kilograms or even more. It boasts a compact structure, smooth transmission, and responsive action. The hydraulic drive components are relatively smaller and lighter compared to other options, making it easy to integrate with the injection molding machine. Our machines offer seamless operation with minimal impact during commutation, allowing for frequent and smooth transitions to adapt to complex workflows.
We are proud to present our hydraulic system injection molding machine, renowned for its stability and efficiency. With two decades of successful sales, this machine has proven to be a reliable choice for manufacturers.
| Machine Parameters |
项目 ITEM | 单位UNIT | SZ—5500A | |||
注射装置 INJECTION UNIT | |||||
螺杆直径 | SCREW DIAMETER | mm | 80 | 85 | 90 |
螺杆长径比 | SCREW LID RATIO | L/D | 22.3 | 21 | 19.8 |
理论注射容积 | THEORETICAL SHOT VOLUME | CM3 | 2141 | 2418 | 2710 |
注射质量(PS料) | SHOT WEIGHT(PS) | g | 1948 | 2200 | 2466 |
注射压力 | INJECTION PRESSURE | Mpa | 188 | 167 | 149 |
理论注射速率(PS料) | THEORETICAL INJECTION RATE(PS) | g/s | 427 | 482 | 541 |
塑化能力(PS料) | PLASTICISING CAPACITY | g/s | 80 | 100 | 118 |
螺杆驱动扭矩 | SCREW TORQUE | N.m | 5170 | ||
螺杆最高转速 | MAX.SCREW ROTATE SPEED | r/min | 150 | ||
洼射行程 | INJECTION STROKE | mm | 425 | ||
合模装置 CLAMPING UNIT | |||||
合模力 | MAX.CLAMPING FORCE K | KN | 5500 | ||
移模行程 | MAX.OPENING STROKE | mm | 820 | ||
拉杆有效间距(VxH) | SPACE BETWEEN TIE BARS | mm | 810×810 | ||
允许模厚(MIN-MAX) | MOULD HEIGHT | mm | 350-820 | ||
模板最大开距 | MAX.DAYLIGHT | mm | 1640 | ||
液压顶出力 | EJECTOR FORCE | KN | 150 | ||
液压顶出行程 | EJECTOR STROKE | mm | 210 | ||
液压顶出杆总数 | EJECTOR QUANTITY | 13 | |||
其它 OTHER | |||||
油泵电动机功率 | PUMP MOTOR POWER | KW | 55 | ||
油泵最高压力 | PUMP PRESSURE | Mpa | 16 | ||
料简加热功率 | HEATING POWER | KW | 33 | ||
加热区段 | HEATING ZONE | 6 | |||
机器外形(LxWxH) | SIZE | m | 8.4×2.2×2.6 | ||
机器净重 | NET WEIGHT | t | 23.5 | ||
油箱容积 | OIL TANK CAPACITY | L | 1000 | ||
国际公认型号 | INTERNATIONAL DESIGNATION | 5500—4040 | |||
Machine configuration |
| After-sales service |
We provide free accessories to keep the machine running without any problems
Company Profile
ZHANG JIA GANG SHEN ZHOU MACHINERY CO.,LTD.located in Zhangjiagang City-new Port City of China, We are close to the port city and have great convenience on transportation.
We are an entity factory with a whole line of injection molding machines. We gather many years of rich experience to make “SZ” series automatic computer Injection Molding Machine and its
equipment. Its excellent quality, stable performance, attractive price-performance meet the client's demands and profits.
We are a manufacture of injection molding machine .Our machines are sold to more than 20 provinces of China and exported to 50 countries of Europe, USA. Latin and South America.
Middle East. Southeast Asia, Russia, Middle Asia. Africa. And all of our clients give high reputations for our machines and services.
We are the member of Germany TUV (IS09001:2000) registered and Italy CE certified (IG 0407). Our company is accredited for meeting
international standards in management responsibility, quality control, design control, process control, customer
service and other key criteria. And supply continuous satisfaction for our valuable customers at home and abroad.
Adhering to our long-established corporate spirit of 'Everything for Customers”, we will do our best to offer customers the best
quality products and service at the competitive prices, to meet the variable challenges and keep advantage.
SHEN ZHOU a reliable partner in Plastic Injection Processing.
| Engineer onsite service |
Remote video troubleshooting and knowing production operations
Global Express provides machine accessories
| Buyer evaluation |
We are 20 years manufacturer of the injection molding machine in China, more than 1500 customers all over the world.
Packaging & Shipping
Certifications
FAQ
1Q.Do you have an entity factory?
A1 Yes,We are a factory integrating industry and trade and have a whole set of production process.
Q2.How long is our delivery period?
A2 Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 1-2 month.
Q3.What is the price of your injection molding machine?
A3 Our cost-effective performance is very high, the original parts of the machine are imported, wear-resistant, heat-resistant, high ductility.
Q4.How ahout your after-sales service?
A4 Our machines are guaranteed for life, if conditions permit, we will send engineers to overhaul.
项目 ITEM | 单位UNIT | ||||
项目 ITEM | 单位UNIT | SZ—1300A | |||
注射装置 INJECTION UNIT | |||||
螺杆直径 | SCREW DIAMETER | mm | 35 | 40 | 45 |
螺杆长径比 | SCREW LID RATIO | L/D | 24 | 21 | 18.7 |
理论注射容积 | THEORETICAL SHOT VOLUME | CM3 | 173 | 226 | 286 |
注射质量(PS料) | SHOT WEIGHT(PS) | g | 158 | 206 | 260 |
注射压力 | INJECTION PRESSURE | Mpa | 235 | 180 | 142 |
理论注射速率(PS料) | THEORETICAL INJECTION RATE(PS) | g/s | 110 | 143 | 181 |
塑化能力(PS料) | PLASTICISING CAPACITY | g/s | 13.8 | 19.7 | 27.1 |
螺杆驱动扭矩 | SCREW TORQUE | N.m | 740 | ||
螺杆最高转速 | MAX.SCREW ROTATE SPEED | r/min | 250 | ||
洼射行程 | INJECTION STROKE | mm | 180 | ||
合模装置 CLAMPING UNIT | |||||
合模力 | MAX.CLAMPING FORCE K | KN | 1300 | ||
移模行程 | MAX.OPENING STROKE | mm | 400 | ||
拉杆有效间距(VxH) | SPACE BETWEEN TIE BARS | mm | 420×420 | ||
允许模厚(MIN-MAX) | MOULD HEIGHT | mm | 160-440 | ||
模板最大开距 | MAX.DAYLIGHT | mm | 840 | ||
液压顶出力 | EJECTOR FORCE | KN | 31.4 | ||
液压顶出行程 | EJECTOR STROKE | mm | 100 | ||
液压顶出杆总数 | EJECTOR QUANTITY | 5 | |||
其它 OTHER | |||||
油泵电动机功率 | PUMP MOTOR POWER | KW | 13 | ||
油泵最高压力 | PUMP PRESSURE | Mpa | 16 | ||
料简加热功率 | HEATING POWER | KW | 9.2 | ||
加热区段 | HEATING ZONE | 4 | |||
机器外形(LxWxH) | SIZE | m | 4.7×1.25×1.85 | ||
机器净重 | NET WEIGHT | t | 4.3 | ||
油箱容积 | OIL TANK CAPACITY | L | 360 | ||
国际公认型号 | INTERNATIONAL DESIGNATION | 1300—410 | |||
