Product description

The ongoing global energy crisis has brought plastic products to the forefront as they are affordable and long-lasting. They possess the ability to withstand normal wear and tear for extended periods of time, and have become a staple in manufacturing due to their light weight and ease of creating large quantities. In fact, plastic has surpassed certain materials like metal and wood, and has now become a key structural component. To meet the demands of this market, injection molding machines have become a critical tool in the plastic processing industry.

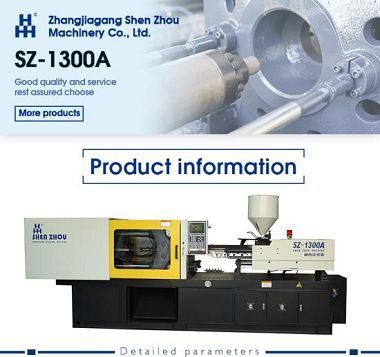

The Flip Top Cap Injection Molding Machine is a unique plastic molding machine that utilizes the plastic's thermoplasticity to create a variety of plastic products. By heating up the plastic and melting it, it is then forced into the mold cavity by applying high pressure quickly. The shape is then held under pressure and cooled to create a finished product. Our machines have the ability to produce large quantities of plastic flip top caps, which increases productivity and efficiency.

The Flip Top Cap Injection Molding Machine we offer delivers exceptional control over each action that is tailored to the desired flow rate and pressure as per the prevailing conditions. This minimizes electricity costs while ensuring a smooth power factor and reduced reactive power loss, with soft start characteristics that prevent high current shocks when initiating operations. What's more, it can also help to minimize wear and tear on motor bearings, oil pump vanes, and other components, thereby extending their life and lowering maintenance costs. Choose our Flip Top Cap Injection Molding Machine for reliable and efficient cap production that offers unbeatable value.

1(001)

If you're in a situation where you have the resources to invest in production but don't have a concrete idea of what to produce, or are unsure about which injection molding machine would be the best fit for your needs, we have the expertise to provide you with the guidance you need. Our team of professionals will help you make informed decisions, ensuring that you get the most out of your investment. So, let us be your go-to resource for all your production needs!

2(001)

Main Parameters

Screw diameter	mm	35	40	45
Screw L/D ratio	L/D	24.5	21	18.7
Shot weight	gram	158	206	260
Injection capacity	cm3	173	226	286
Injection pressure	Mpa	235	180	142
Theoretical injection rate	g/s	110	143	181
Plastic capacity	g/s	13.8	19.7	27.1
Injection stoke	mm	180
Screw torque	N.m	740
Max screw rotate speed	r/min	250
Clamping force	Ton	130
Opening stroke	mm	400
Space between tie bars	mm	420x420
Mould height	mm	160~440
Max daylight	mm	840
Ejector force	ton	3.14
Ejector stroke	mm	100
Ejector quantity		5
Oil pump motor	kw	15
Pump pressure	Mpa	10
Heating power	kw	9.2
Machine size	M	4.71251.85
Machine weight	ton	4.3
Oil tank capacity	L	360
International designation		1300-410

Detail image

4(001)

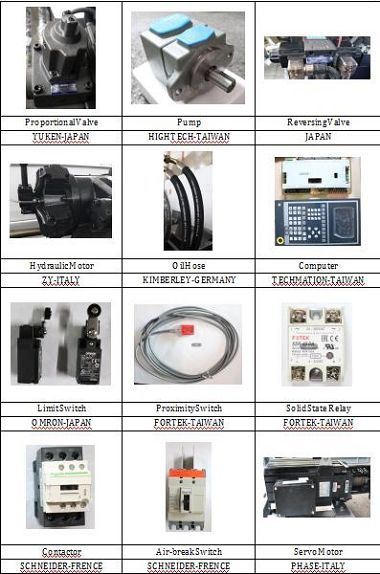

The main parts

5(001)
