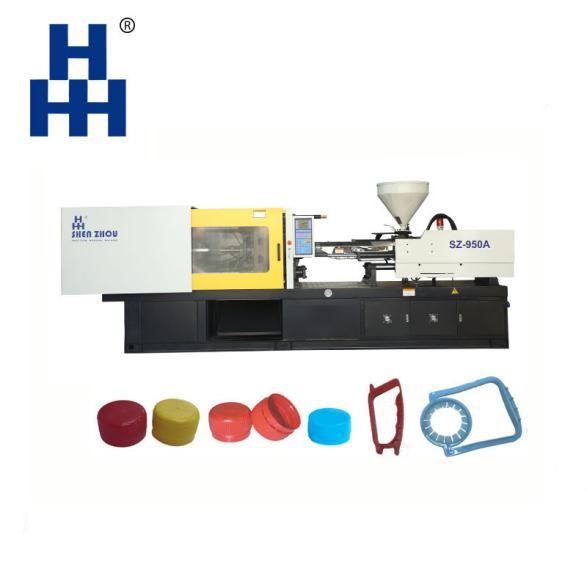

The 5 Gallon Water Bottle Cap Injection Molding Machine boasts advanced plasticizing components that enhance the machine's plasticizing capacity and injection precision. Its screw transmission utilizes spline connection to ensure uniform force during screw rotation, and the shooting part moves along a linear guide rail to minimize friction. Additionally, it features a novel mechanical safety structure mounted on the side and an inclined hard moving formwork sliding foot structure.

The die structure of the five fulcrum inner winding die locking part 5 Gallon Water Bottle Cap Injection Molding Machine has been optimized to have a pressure center design. This design allows the die locking force to be directly applied to the die, eliminating the problem of tilting when the valgus structure meets the long eccentric die. As a result, the forming accuracy of the product is improved. Furthermore, this optimized design offers a larger die moving stroke and lower pin contact stress. These improvements enhance the overall performance and efficiency of the machine.

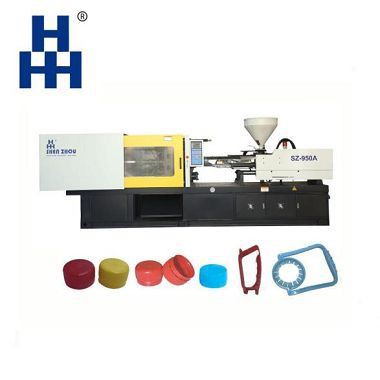

20(001)

Main Parameters

Screw diameter	mm	35	40	45
Screw L/D ratio	L/D	24.5	21	18.7
Shot weight	gram	158	206	260
Injection capacity	cm3	173	226	286
Injection pressure	Mpa	235	180	142
Theoretical injection rate	g/s	110	143	181
Plastic capacity	g/s	13.8	19.7	27.1
Injection stoke	mm	180
Screw torque	N.m	740
Max screw rotate speed	r/min	250
Clamping force	Ton	130
Opening stroke	mm	400
Space between tie bars	mm	420x420
Mould height	mm	160~440
Max daylight	mm	840
Ejector force	ton	3.14
Ejector stroke	mm	100
Ejector quantity		5
Oil pump motor	kw	15
Pump pressure	Mpa	10
Heating power	kw	9.2
Machine size	M	4.71251.85
Machine weight	ton	4.3
Oil tank capacity	L	360
International designation		1300-410

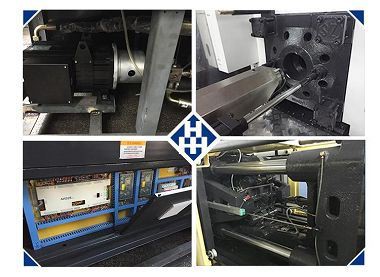

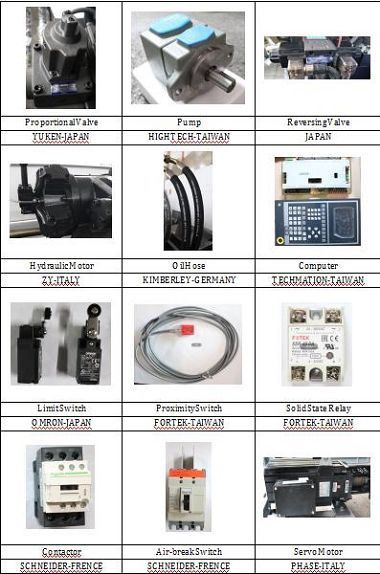

Detail image
